Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Longse/OEM
  • Model Number: LDHC20A200
  • Type: IP Camera
  • Style: Dome Camera
  • Sensor: CMOS
  • Technology: Infrared
  • Special Features: Plastic
  • Image Sensor: SONY COMS
  • Resolution: 1080P
  • Lens: 2.8mm
  • Infrared: Yes
  • WDR: Yes
  • Audio: Optional
  • POE: Optional
  • Onvif: Yes
  • Compression: H.264

Packaging & Delivery

Packaging Details: Standard Carton
Delivery Detail: Within 7 working days for sample

New product cctv camera, cctv hikvision similar housing, night vision infrared, security camera - LDHC20A200



New Promotion
New products coming for New Year 2017


WIFI KIT        (1-4MP, the second supplier after Hikvision)
PLC KIT          (1MP/2MP, smart home solution)
IP cameras    up to 4K (H.265)
XVR                 5 in 1, support 4MP AHD/TVI/CVI, 4K, CVBS together.


Special promotion



1. HD analog:
LIRDLHTC100B, 4 in 1 HD analog, 1MP, $5.8
LIRDLHTC200F, 4 in 1 HD analog, 2MP, $9.9

2. IP camera:
    SE200: IMX323 + Hi3518E(2MP) - LDHC20SE200 $20.3
    S200: IMX323 + Hi3516C (2MP) - LDHC20S200 $23.8
    S400: OV4689 + Hi3516D (H.264/H.265) (4MP) - LDHC20S400 $33.8
 * IP camera, S400 - 4MP, $33.8 (h.265, better night vision)


 (1MP-8MP/H.265 IP Camera, Wifi/ wireless camera, Fisheye camera, NVR, AHD, CVI, TVI, 4 in 1 camera, XVR (5 in 1), CVR, TVR, DVR Kit, PTZ, AUTO ZOOM, Analog, IP Camera/ AHD/ TVI/ CVI Tester,  Accessories )


Longse, the Biggest CCTV OEM manufacturer, brings you more benefits, my dear partner.
Call me online for more details. (skpe: eddy.longse )

Product Description



Model NO. LDHC20S200LDHC20SE200 LDHC20A200 LDHC20S400 LDHC20A400
Camera
Image SensorIMX323IMX323IMX322OV4689OV4689
Main processorHI3516CV200HI3518EV200S2L33Hi3516DS2L55
Resolution1080P1080P1080P4MP4MP
Effective Pixels1985(H)*1105(V) 1920(H)*1080(V)1984(H)*1225(V)2688(H)*1520(V)2688(H)*1520(V)
Compression H.264/JPEG/AVI /MJPEGH.264/JPEG/AVI/MJPEG H.264/JPEG/AVI/MJPEG H.264/H.265/JPEG/AVI/MJPEGH.264/JPEG/AVI/MJPEG
TV SystemPAL/NTSC
Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
S/N Ratio≥52dB
Scanning SystemProgressive
Video OutputNetwork

Focus Length2.8mm2.8mm2.8mm2.8mm2.8mm
Focus ControlFixedFixedFixedFixedFixed
Lens TypeFixedFixedFixedFixedFixed
Pixels3MP3MP3MP3MP3MP
Night Vision
Infrared LED42µ x 2PCS
Infrared Distance20M
IR StatusUnder 10 Lux By CDS
IR Power OnCDS Auto Control
Network
EthernetRJ-45 (10/100Base-T)
ProtocolTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
ONVIFSupport ONVIF 2.4
P2PYES, Support QR Code
POEOptional, Support IEEE 802.3af
WIFIN/A
Video Delay 0.3S (Within the Lan)
Main Stream 11920*1080@25fps1920*1080@15fps1920*1080@30fps2560*1440@20fps2560*1520@20fps
Main Stream 2///2304*1296@30fps2048*1520@20fps
Main Stream 3///1920*1080@30fps1920*1080@20fps
Sub Stream 1720*480@25fps720*480@15fps720*576@30fps720*480@20fps
720*480@30fps
720*480@20fps
Sub Stream 2//720*480@30fps/640*360@20fps
Sub Stream 3//640*360@30fps//
Tri Stream352*288@25fps352*288@15fps352*288@30fps352*288@20fps
352*288@30fps
352*288@20fps
IE Brower IE8-11, Google Chrome, Firefox, Safari, Mac Safari
Smart PhoneiPhone, iPad, Android, Android Pad
Packaging & Shipping

Packaging

Longse CCTV camera standard package.

Your box (MOQ 500 pcs ) designed welcome!

Payment Terms

1. Telegraphic Transfer (T/T)

a. Usually we accept 100% T/T in advance;

b. Subjected the order amount, we can accept 30% deposit T/T in advance + 70% balance T/T before the shipment.

Note: When you make the payment, please write down the PROFORMA INVOICE (PI) NUMBER on the bank receipt as the reference.

2. PayPal

4% commission charges will be added into the amount.

3. Letter of Credit (L/C)

a. L/C is available for the sea transit only. We don't accept L/C for the air transit.

b. On condition that order amount reaches someone then we will accept L/C;

c. We accept L/C at sight only;

Warranty

1. To CCTV Cameras/ DVRs

a. 2 years, products with your own logo or without logo

b. 3 years, products with Longse logo

2. Conditions and Terms

a. The warranty starts from the delivery date from our factory;

b. During the warranty, any defective product will get repaired or replaced for free;

c. The warranty is unavailable for those products which are broken by the violence or the carelessness or repaired or altered without the authorization.

d. A RMA form will be asked to fill in.

Shipment

1. By TNT, DHL, UPS or FedEx

2. By our forwarding agent (by air or by sea);

3. By your own forwarding agent

4. By domestic forwarding agents to any city in China.

Leadtime

1. Sample orders will be delivered from our factory within 5 working days.

2. General orders will be delivered from our factory within 12 working days.

3. Big orders will be delivered from our factory within 19 working days at most.



Our Services
Build YOUR Brand with CCTV products, Longse will try to help you make it.

Keep try to meet customers' strict rules for PRICE, QUALITY & professional OEM requests;
winning over 6,000 customers taking longse as a reliable partner,  and longse cannot run well if without OEM/ OEM Services below:

1. Silk printing on Cameras, DVRs and Neutral box;
2. Your design color box/ Carton with your Brand, info;
3. CMS for DVR, NVR; -- FREE
4. IE web client for IPC, DVR, NVR; -- FREE
5. Customer item numbers, design for labels on products/ boxes; -- FREE
6. Customer user manuals; -- FREE
7. Housing: Please offer us the housing design file then we will offer you a sample for your checking;
....
Build YOUR Brand FREE !


Company Information
1. Scale
- BIGGEST CCTV OEM manufacturer in China, TOP 3 export volumes

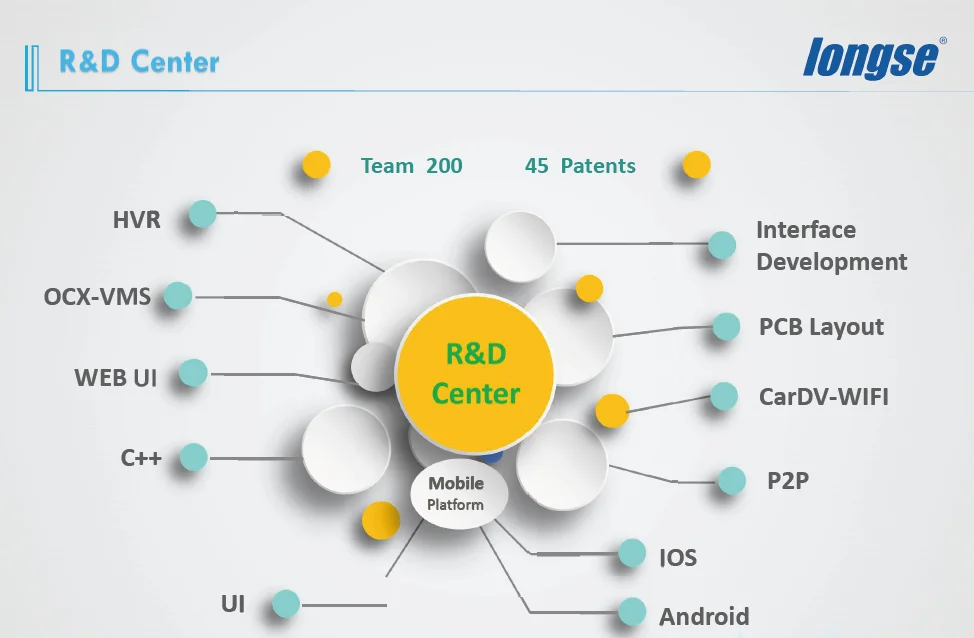

- Over 200 people R&D team
- Founded in 2006, Self-produce surveillance IP camera, HD Analog, Analog, DVR, NVR...
- Factory area over 50,000 square meters

2. Capacity
- a VIP of SONY, 12x SAMSUNG SMT lines, camera PCB 800,000pcs Monthly produce
- About 2000 workers, 35,000pcs daily output promises a EARLY delivery time;



3. Customers & Honor
- Over 6,000  business partners from more than 150 countries
- HI- Tech Enterprise Qualification
- Top 100 Security Enterprise of China


What's New?

New Promotion:

-  Special Price 4 in 1 HD analog, AHD/ TVI/ CVI/ CVBS, $5.8

-  Special Promotion IP camera 2MP/ 4MP, hot selling $20.3



New Products
New products coming for NEW Year 2017

(1MP-8MP/H.265 IP Camera, Wifi/ wireless camera, Fisheye camera, NVR, AHD, CVI, TVI, 4 in 1 camera, AHD DVR, CVR, TVR, DVR Kit, PTZ, AUTO ZOOM, Analog, IP Camera/ AHD/ TVI/ CVI Tester,  Accessories )

Longse, the Biggest CCTV OEM manufacturer, brings you more benefits, my dear partner.
Call me online for more details. (skpe: eddy.longse )
